The X60 pipeline inspection system has everything necessary to survey pipelines up to 300mm. As well as the usual features that come as standard on regular pushrods (on-screen meterage, camera traceability, self-levelling picture, text overlay, documented findings, on-site delivery), the X60 comes packed with brand new additions including: PDF editing, clock position observations, longer battery life, disc brakes, Outlook/WhatsApp/Dropbox report sharing and more. As well as this, the system has been WinCan ProTouch enabled, so users can produce a report with the latest innovation from WinCan and share it direct to WinCan Web. And with a choice of 8 or 10” screen sizes, the X60 is one of the most comprehensive pipeline inspection systems ever developed.

The X60 Coiler works in conjunction with:

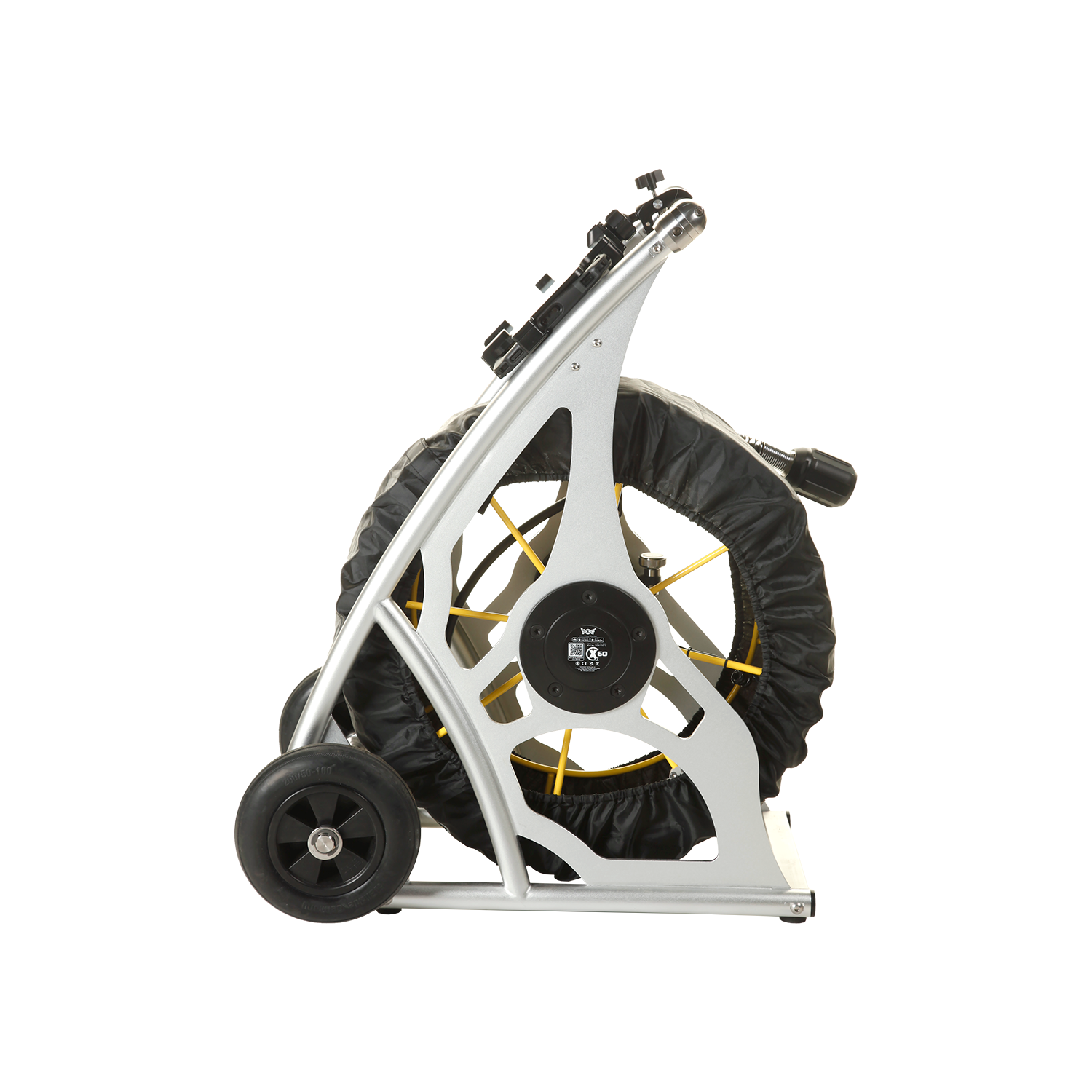

The X60 system contains the following components: X60 coiler – X-Range Tablet – 44mm camerahead. To purchase this system or any of it’s components individually, please contact us.

System Components

Contact Us

Interested about this product? Contact Us!

For all international customers please click here.

Product Specifications

Part number
  • 1006-1001-0
  • 24kg
Rod Length
  • 60m
Distance Counter
  • mtr/ft
Rod Diameter
  • 12mm
Camera Diameter
  • 44mm
Pipe Use
  • 50mm to 300mm
  • 6.52Ah
Charge Current
  • 1.5A
  • X60 Coiler
  • Reel: 840mm x 441mm x 655mm
IP Rating
  • IP56(coiler) IP68(camerahead)
  • 33kHz or 512Hz
Self-levelling camera
  • Yes
Battery Life
  • 10hrs nom.
Charge Time
  • 6 hours
Nominal Voltage
  • 7.4V
  • CE and UKCA
