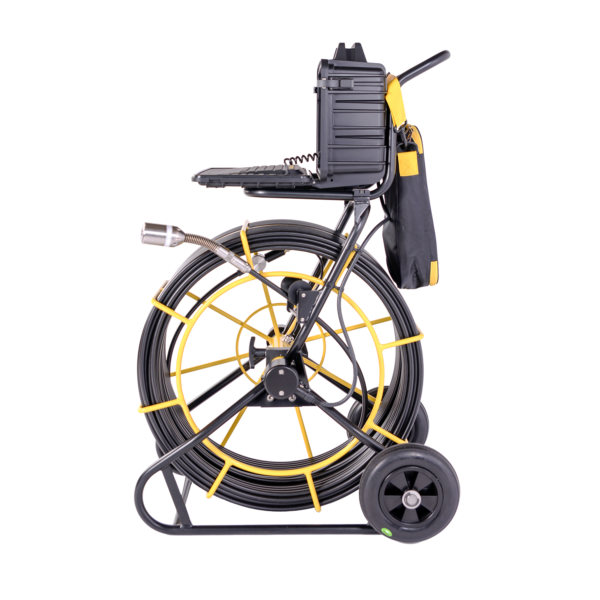

The Maxprobe™ XL is the 100m version of our signature push-rod camera system, with enhanced features to handle the extended push-reach and rod length, yet still boasting the same functionality and benefits, such as all-terrain pneumatic tyres and easy-access rod-braking system, as well as the 10.4” sunlight readable screen that makes the entire Maxprobe range easy to use.

The Maxprobe XL Coiler works in conjunction with:

Logo 2
Logo 3
Logo 4

The Maxprobe XL system contains the following components: Maxprobe XL Coiler – Maxprobe Control Box – 44mm camerahead. To purchase this system or any of it’s components individually, please contact us.

System Components

Contact Us

Interested about this product? Contact Us!

For all international customers please click here.

Product Specifications

Part number
  • 1002-1001-0
  • Reel: 38.5kg
  • Box: 5.5kg
Rod Lengtht
  • 100m
Rod Diameter
  • 12mm
Meterage Counter
  • Yes
  • 12v DC / 230v AC / 115v AC
  • Ex Power Supply – 1.7A Max
Operating Temp.
  • -10°C – +50°C
Charging Temp.
  • 0°C – 40°C
  • Maxprobe XL Coiler
  • Li-ion (9hrs running time)
  • Reel: 660mm x 480mm x 998mm
  • Box: 360mm x 290mm x 160mm
LCD Display Size
  • 10.4”
  • 800 x 600 RGB (SVGA)
IP Rating
  • Reel: IP68
  • Box: IP54
  • Frequency: 512Hz / 33kHz Optional
  • Location: Camera Head
  • 32Gb—1Tb HDD
  • 2x USB 2.1 ports
  • MPEG4
