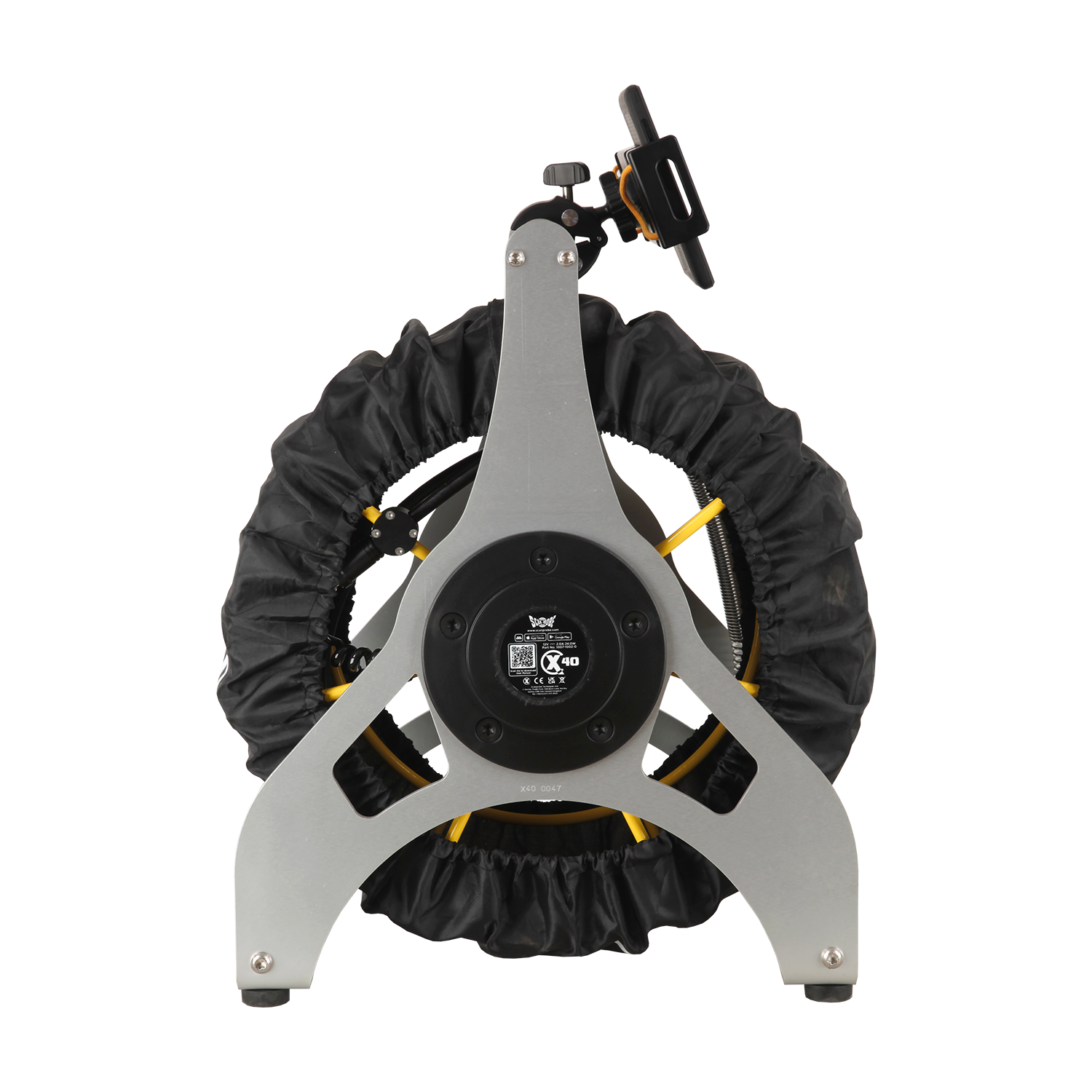

As one of the first commercially available X-Range products, the X40 was the pioneer for this new Scanprobe range. Able to navigate practically any pipeline with a 50mm diameter or greater, the X40 is the go-to product for Plumbers and Drainage engineers alike. Built from robust and lightweight materials and powered by the X-Range Tablet, Maxprobe, or even your personal mobile device, the X40 is one of the most user-friendly and flexible inspection systems on the market today.

The X40 Coiler works in conjunction with:

Logo 1
Logo 2
Logo 3
Logo 4

The X60 system contains the following components: X40 coiler – X-Range Tablet – 30mm camerahead. To purchase this system or any of it’s components individually, please contact us.

System Components

Contact Us

Interested about this product? Contact Us!

For all international customers please click here.

Product Specifications

Part number
  • 1007-1002-0
  • 12.4kg
  • 12.8kg with tablet
Rod Lengtht
  • 40m
Distance Counter
  • mtr/ft
Rod Diameter
  • 8.6mm
Camera Diameter
  • 30mm
Pipe Use
  • 50mm to 150mm
  • 6.52Ah
Charge Current
  • 1.5A
  • X40 Coiler
  • Reel: 1010mm x 415mm x 25mm
  • Tablet: 8 inch: 8.42 in. L x 5.32 in. H x 0.45 in. D
    213.9 mm L x 134.8 mm H x 11.4 mm D
IP Rating
  • IP56 (coiler) IP68 (camerahead)
  • 33kHz or 512Hz
Self-levelling camera
  • Yes
Battery Life
  • 6 to 8 hours
Charge Time
  • 4 hours
Nominal Voltage
  • 7.4V
  • CE and UKCA
