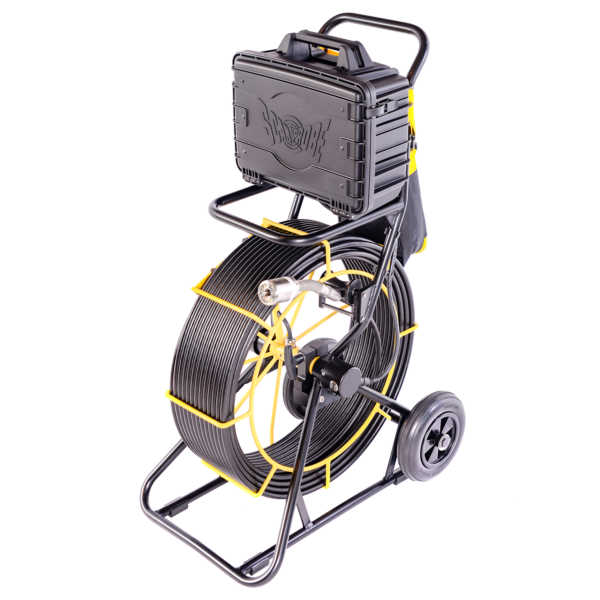

The “flagship” push-rod camera system manufactured by Scanprobe Techniques , the Maxprobe™ has been an industry favourite since its release in 2014. Boasting a wide range of features that the industry was crying out for, the Maxprobe™ has become a key tool in the pipeline inspection engineer’s van, all over the world.

The Maxprobe Coiler works in conjunction with:

Logo 2
Logo 3
Logo 4

The Maxprobe system contains the following components: Maxprobe Coiler – Maxprobe Control Box – 44mm camerahead. To purchase this system or any of it’s components individually, please contact us.

System Components

Contact Us

Interested about this product? Contact Us!

For all international customers please click here.

Product Specifications

Part number
  • 1023-1001-0
  • Reel: 23.5kg
  • Box: 5.5kg
Rod Lengtht
  • 60m
Rod Diameter
  • 12mm
Meterage Counter
  • Yes
  • 12v DC / 230v AC / 115v AC
  • Ex Power Supply – 1.7A Max
Operating Temp.
  • -10°C to +50°C
Charging Temp.
  • 0°C to 40°C
  • Maxprobe Coiler
  • Li-ion (9h running time)
  • Reel: 1010mm X 415mm X 25mm
  • Box: 360mm X 290mm X 160mm
LCD Display Size
  • 10.4″
  • 800 X 600 RGB (SVGA)
IP Rating
  • Reel: IP68
  • Box: IP54
  • Frequency: 512Hz / 33kHz Optional
  • Location: Camera Head
  • 32Gb – 1Tb HDD
  • 2x USB 2.1 ports
  • MPEG4
